LEAD FREE WAVE SOLDER
DW 350 SERIES
The
Great Improvement of Lead Free Soldering System
In
conjunction with the mission of World Environmental,
we provide the newest generation of wave soldering machine

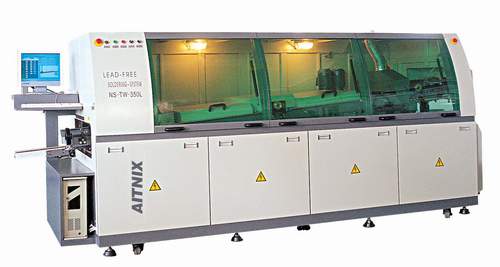

- DW 350 Series Nitrogen Protection Lead Free Wave Soldering
System, we not only ensuring the soldering result, and
environment will be satisfy the environmental standard.
It's structure is reasonable and delicate, that's certainly
advantages comparing with the others brand name.
 SPECIFICATIONS |
|
MODEL
|
DW
350 LF
|
DW
300 S
|
|
PCB
Size
|
Max. 350 mm
|
Max. 300 mm
|
|
Conveyor
Motor
|
1
Phase 220AC, 90W
|
1
Phase 220AC, 60W
|
|
Conveyor
Speed
|
2.0
m/min
|
1.8
m/min
|
|
Air
Pressure of Spray Fluxer
|
>
4 kg/cm2
|
>
4 kg/cm2
|
|
Fluxer
Capacity
|
Max.
20 Liter
|
Max.
5.2 Liter
|
|
Pre-Heat
Capacity
|
12
KW
|
9
KW
|
|
Wave
Solder Pot
|
14
KW
|
9
KW
|
|
Wave
Motor
|
3
Phase 220 / 380 V
|
3
Phase 220 / 380 V
|
| Solder
Temperature |
Max
350 oC
|
Max
300 oC
|
| Solder
Capacity |
Approx.
600 kg
|
Approx.
350 kg
|
|
Cooling
Fan
|
1
Phase 220V, 30W x 2
|
1
Phase 220V, 30W x 2
|
| Finger
Cleaning Pump |
1
Phase 220V, 30W
|
1
Phase 220V, 30W
|
|
Conveyor
Angle
|
Adjustable
3o - 7o
|
Adjustable
3o - 7o
|
|
AC
Power
|
3
Phase 220 / 380V
|
3
Phase 220 / 380V
|
|
Total
Consumption
|
28
KW
|
19.5
KW
|
|
Net
Weight
|
Approx.
800 kg
|
Approx.
800 kg
|
| Dimension |
4,250
(L) x 1,350 (W) x 1,550 (H)
|
3,200
(L) x 1,180 (W) x 1,550 (H)
|
| FEATURES |
|
|
Spray
area and flux quantity can be easily programmed
through our control system, the variables
can be used to customize the fluxing process
to specific board & production require.
|
|
|
New
type of multi-zones pre-heating system with
forced convection design, which increasing
the heat efficiency & ensuring the various
production and demands, including water-based
(VOC-Free) fluxes. The heating unit is PID
controlled and has great guiding plates
to maintain even heat distribution form
edge to edge. The overall pre-heat length
is enclosed with top sides covers and focused
exhaust.
|
|
|
Forced
cooling system by condensor, avoiding the
miss-location of the companents or air solder
bubbles, etc, which provide the excellent
wave soldering result.
|
|
|
Computerized
management of critical data
|
|
|
Aims
to data analysis & saving function,
provide the data-bank solution.
|
|
|
The
finger transport system with variety of
fingers is available to handle PCB's or
pallets. Easy removable titanium fingers
make maintenance simple.
|
|
