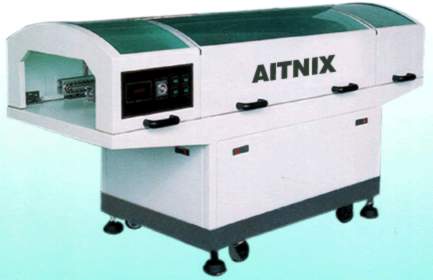

AUTOMATIC DOUBLE CUTTING MACHINE
AC 300 / 300S SERIES
 SPECIFICATIONS |
|
MODEL
|
AC
300
|
AC
300S
|
|
PCB
Size
|
Max
300 mm
|
Max
300 mm
|
|
PCB
Conveyor Height
|
750
+/- 20 mm
|
750
+/- 20 mm
|
|
Conveyor
Direction
|
L
- R
|
L
- R
|
|
Conveyor
Speed
|
Max.
2 m/min
|
Max.
2 m/min
|
|
PCB
Thinkness
|
1
- 2 mm
|
1
- 2 mm
|
|
Cutter
Diameter
|
Dia.
200 mm
|
Dia.
200 mm
|
|
Cutter
Number
|
2
|
2
|
|
Cutting
Revlution
|
6000
rpm
|
6000
rpm
|
| Foot
brushing motor |
1
Phase AC220V, 40W
|
1
Phase AC220V, 40W
|
| Transmission
motor |
1
Phase AC220V, 90W
|
1
Phase AC220V, 90W
|
|
Cutting
motor
|
3
Phase 380V, 0.75KW
|
3
Phase 380V, 0.75KW
|
| Power |
3
Phase 380V
|
3
Phase 380V
|
|
Finger
Cleaning Motor
|
1
Phase 220V, 10W
|
1
Phase 220V, 10W
|
|
AC
Power
|
3
Phase 380V (3P5W)
|
3
Phase 380V (3P5W)
|
|
Total
Consumption
|
1.2
KW
|
1.2
KW
|
|
Weight
|
Approx.
230 Kg
|
Approx.
230 Kg
|
| Dimensions |
1,800(L)
x 800(W) x 1,050(H) mm
|
1,800(L)
x 800(W) x 1,050(H) mm
|
| FEATURES |
|
|
Adopts
human engineering outlook design.
|
|
|
Dual
cutting blade, which suitable for large
PCB production.
|
|
|
Balancer
pins roller ensuring the excellent cutting
result.
|
|
|
Lead
wire brushing device, which preparation
for the precision solder process.
|
|
|
Two
pieces of diameter 200 mm lead wire cutting
blade are provided
|
|
|
Suitable
for in-line production process
|
|
|
