  자외선 조사기 (UV SPOT CURING EQUIPMENTS)

















LEAD FREE WAVE SOLDER

DW 300 SERIES

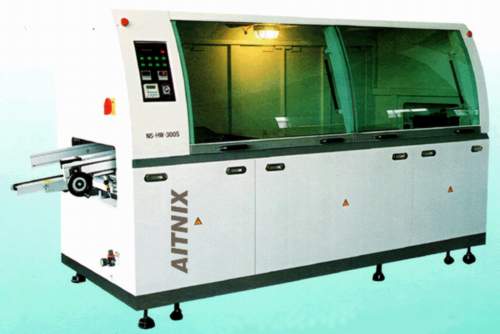

The Great Improvement of Lead Free Soldering System



In conjunction with the mission of World Environmental, we provide the newest generation of wave soldering machine - DW 300S Series Nitrogen Protection Lead Free Wave Soldering System, we not only ensuring the soldering result, and environment will be satisfy the environmental standard. It's structure is reasonable and delicate, that's certainly advantages comparing with the others brand name.







 SPECIFICATIONS

MODEL

DW 350 LF

DW 300 S

PCB Size

Max. 350 mm

Max. 300 mm

Conveyor Motor

1 Phase 220AC, 90W

1 Phase 220AC, 60W

Conveyor Speed

2.0 m/min

1.8 m/min

Air Pressure of Spray Fluxer

> 4 kg/cm2

> 4 kg/cm2

Fluxer Capacity

Max. 20 Liter

Max. 5.2 Liter

Pre-Heat Capacity

12 KW

9 KW

Wave Solder Pot

14 KW

9 KW

Wave Motor

3 Phase 220 / 380 V

3 Phase 220 / 380 V

Solder Temperature

Max 350 oC

Max 300 oC

Solder Capacity

Approx. 600 kg

Approx. 350 kg

Cooling Fan

1 Phase 220V, 30W x 2

1 Phase 220V, 30W x 2

Finger Cleaning Pump

1 Phase 220V, 30W

1 Phase 220V, 30W

Conveyor Angle

Adjustable 3o - 7o

Adjustable 3o - 7o

AC Power

3 Phase 220 / 380V

3 Phase 220 / 380V

Total Consumption

28 KW

19.5 KW

Net Weight

Approx. 800 kg

Approx. 800 kg

Dimension

4,250 (L) x 1,350 (W) x 1,550 (H)

3,200 (L) x 1,180 (W) x 1,550 (H)







 FEATURES

European style with streamline design, combination with classic & advanced technology.

Specialized design of the transmission rail, avoiding the interference to the rail or chain because of the heat shock.

Precision titanium finger, ensure the stable transmission for PCB.

Transmission system adopts electronic speed controller, stable & accuracy.

Low-pressure spray fluxer device, scanning stroke will be auto-adjustment based on the PCB width, ensure the average & accurate flux density coating on the PCB.

Spray gun auto-cleaning device

Infrared pre-heater is designed to act pursuant to the principle of heat, which not only ensure the best conduction & reflection of heat, also aims to reduce the power consumption & perform the accurate temperature control.

Precision dieing-type wave pumping constructin, the second wave not only with mirror wave-forming, and also convenience for operation & maintenance.

Crest value of wave is adjusted by inverter technology, stable & reliable.

Short circuit and overload protection device.

Emergency stop and warning device for failure
