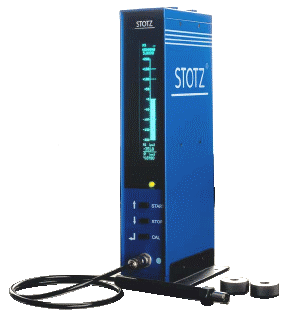

AIR ELECTRONIC COLUMN

AIR ELECTRONIC COLUMN

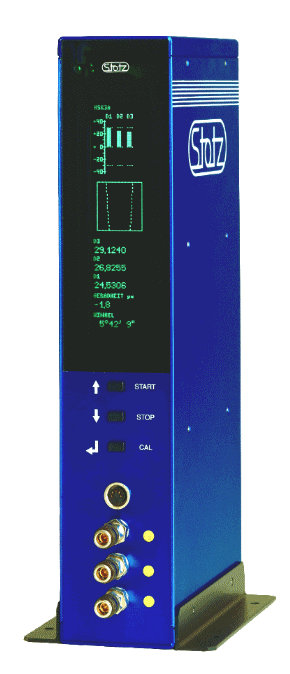

MSG - Multifunctional Measuring and Control Device

FEATURES

FEATURES

In-process and post-process gauging and control
Pneumatic length measuring
Evaluation of miscellaneous gauge signals
Easy to operate
Free programmable graphic display
User specific programming - Up to 18 programs per MSG
Statistical Analysis
MSG-Networking internal data transfer between MSG devices
Data transfer with system network
Minimized air consumption and maximized measuring stability through controlled air supply
Up to 4 pneumatic or 10 LVDT channels simultaneously

SPECIFICATIONS

GENERAL OPERATING AND CONNECTION LOADS
Current Input	100 – 230VAC / 40 – 60Hz
Capacity	approximately 20VA
Column Enclosure	IP40
Pneumatic Measuring Instruments	Air Pressure Supply 3 bar (+/- 0,3 bar) 43.5 PSI (+/-4.35 PSI)
Air Pressure Monitor Range	0,01 … 4 bar (0.145 – 58 PSI)
Bursting Pressure	over approximately 8 bar (116 PSI)
Air Conditions	dry, clean, and oil free
Inductive	Half-Bridge Connection

DEVICE SPECIFIC CHARACTERISTICS
Processor	NEC V850 SB1 20MHz
Graphic Display	Resolution: 32 x 256 Pixel
Pneumatic – Channels	1 (front side)
Inductive – Channels	2 (back side T1 / T2)
Measuring Programs	4
Measuring Groups	1
Calibration Groups	2 (Zero, 1 Point, or 2 Point)
Number of Masters	2 (0, 1,2: None, ZERO, MIN/MAX)
Features displayed	6 per Measuring Program
Scanning Rate	50 ms

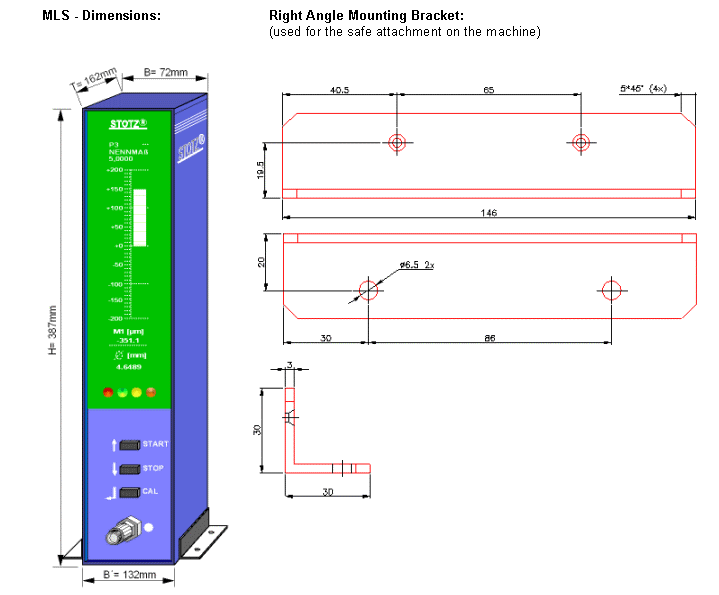

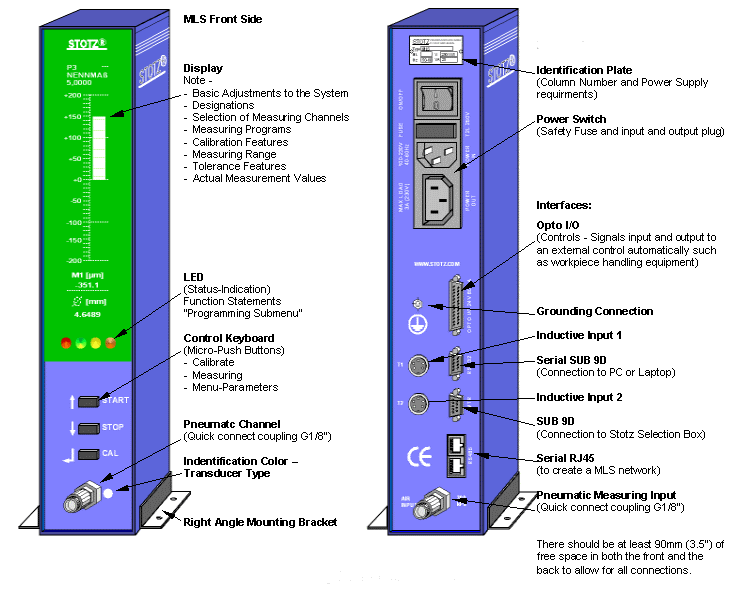

INTERFACES (BACK SIDE OF MLS)
Digital Inputs and Outputs	8 x I/O Opto-Isolated (SUB 25D)
Input	24VDC <5mA (Current consumption)
Output	24VDC 100mA (max. load)
Selection Box	WTMSG2 external keyboard
	Selector switch for programs (1 thru 4)
	Key – Calibrate (CAL)
	Keys – Measure (START / STOP)
Serial Interface	RS232 (COM1)
MLS - Network	RS485

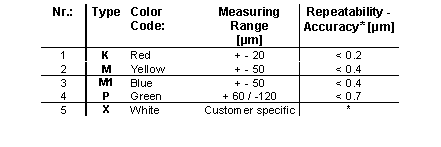

TRANDUCER TYPES AND RANGES
