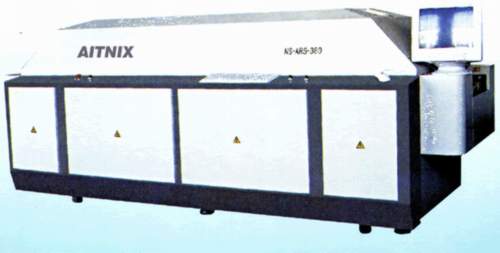

SMT LEAD FREE REFLOW SOLDER
AR 5380 SERIES
SPECIFICATIONS |
MODEL
|
AR
7380
|
AR
5380
|
Conveyor
Width
|
390 mm
|
390
mm
|
Dimension
|
4,200 (L) x 1,520 (W) x 1,480 (H)
|
3,960 (L) x 1,520 (W) x 1,480 (H)
|
Conveyor
Height
|
900 mm +/- 20
|
900
mm +/- 20
|
Heating Mode
|
Individually (Upper & Lower)
|
Individually (Upper & Lower)
|
Number
of heat zones
|
7
|
5
|
Number
of independence wind
|
7
|
5
|
Warm-up
period
|
20 min.
|
20 min.
|
Control
Mode |
Computer control
|
Computer control
|
Transmission
method
|
CM : Both chain & mesh
|
CM : Both chain & mesh
|
Mesh
trnasmission speed |
0.5 - 1.9 m/min
|
0.5 - 1.9 m/min
|
Mesh
driven motor
|
1 Phase 220V 90W
|
1 Phase 220V 90W
|
Power
Consumption
|
32 KW
|
30
KW
|
Temperature
control
|
PID Temperature Control
|
PID Temperature Control
|
Temperature
setting
|
Room Temperature - 350 C
|
Room Temperature - 350 C
|
Temperature
accuracy
|
+/- 2 C
|
+/- 2 C
|
Thermo-profile
display
|
Inclusive
|
Inclusive
|
Weight |
1,150 Kg
|
950
Kg
|
* AR
8380 / 7380 / 6380 / 5380 / 4380 Models
are also available.
FEATURES |
|
User
friendly and fully implemented with the
functions of computer analysis and data
management.
|
|
CM
: Chain & Mesh, both suitable for in-line
production, mass production or different
specification PCB will be required to be
processed at the same time.
|
|
M
: Mesh Transmission, suitable for mass production
or different specification PCB will be required
to be processed at the same time.
|
|
The
thermo monitoring and analysis function,
with the data saving & information bank,
which providing the efficiency reference
for the poduction process.
|
|
PID
temperature control system, ensuring the
high performance of precision temperature
control.
|
|
The
hot air circulation theorem between the
upper and lower heating zones, providing
the stable and even thermo condition for
SMT soldering process.
|
|
Uninterruptible
power supply (UPS), avoiding the unnecessary
damage of PCB because which can't come out
from the oven and protect the data used
will be storage by supplying battery backup
when power fails.
|
|
