가시광선 스펙트로라디오메타
- SPECTRA 2000
(MINI
VIS SPECTROMETER WITH LIGHT SOURCE)

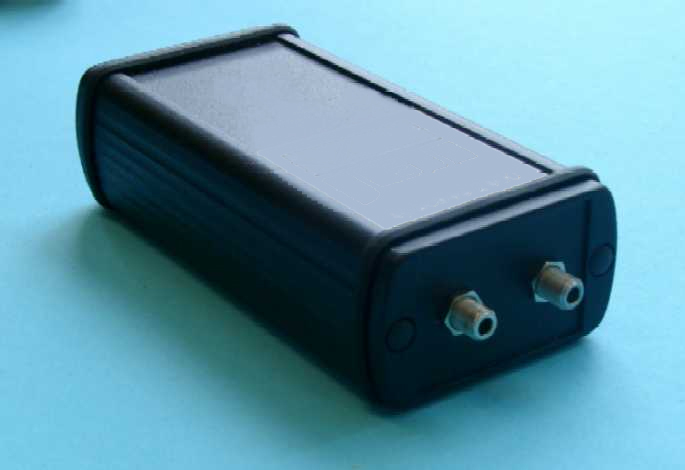

Miniature VIS Spectrometer with Internal Light Source - SPECTRA
2000
 SPECTRA 2000 (download datasheet (134kB)) is a fiber coupled VIS
spectrometer with an internal light source. It is characterized by an excellent
straylight performance, a high sensitivity and small dimensions.
SPECTRA 2000 is offered in two versions:
The RS232
version supplied with a PC cable and a power supply. The instrument
automatically detects the COM port. Thus problems during installation are
avoided.
The USB version (under development) can easily be connected with an
USB
port of the PC and the measurement can be started immediately - a real plug
and play solution. The device is bus powered.
The software ATX SPECTRA is
suited for spectra acquisition and transmission/ reflection calculations. Single
and continuous measurement modes as well as averaging are possible.
Data can
be exported to Excel spread sheets and to ASCII files.
|
|
The device can be delivered with
various
fiberoptic measuring heads,e.g. dip and reflection probes.
|
Specifications
|
Applications |
Measurement of reflection and transmission spectra,
e.g. of solid surfaces, filters and liquids |
|
Spectral range |
380 nm ... 760 nm |
|
Slit |
100 탆 fiber (optional 50 탆), NA 0.22 |
|
Input |
SMA (optional ST) |
|
Spectral resolution |
9 nm (6 nm with 50 탆 fiber) FWHM |
|
Digital spectral resolution |
4.1 nm |
|
Digital resolution |
14 bit ADC |
|
Wavelength accuracy |
?nbsp;0.5 nm (ASTM E275, filter BG 20, 2 mm, at 528.7
nm/ 684.3 nm) |
|
Wavelength reproducibility |
?0.2 nm (ASTM E275, filter BG 20, 2 mm, at 528.7nm/
684.3 nm) |
|
Photometric precision |
?0.002 AU (ASTM E275, D = 1, at 550 nm) |
|
Photometric accuracy |
?0.005 AU (ASTM E275, D = 0.46, at 550 nm) |
|
Photometric range |
0 ... 3 AU (ASTM E275, ND filters, at 550 nm)
|
|
Stray light |
< 10-3 (ASTM E387, GG 495, 2 mm, at 430
nm) |
|
Sensitivity |
typ. 1.3?014 counts/Ws (550 nm) |
|
Integration time |
10 ... 5000 ms |
|
Spectrometer
Grating
Detector |
Holographic
Photodiode array
|
|
Light source |
Lamp + blue LED |
|
Power supply |
RS232 version: 230 VAC (115 VAC optional)/ 9 VDC
USB version: Hub powered |
|
Interfaces |
RS232, 8N1, 38400 Bd
USB1.1 fullspeed
(12Mbit/sec) |
|
Dimensions |
120 mm x 58 mm x 34 mm |
|
Weight |
200 g |
|
Enclosed accessories |
PC software ATX SPECTRA for Windows
98/2000/XP/NT(only RS232)
Operation manual
RS232 version: Switch mode
power supply Mainy
PC cable
USB version: USB
cable
Transport box |
Software: ATX SPECTRA
|
