가시광선 스펙트로라디오메타
- SPECTRA 1100
(VISIBLE SPECTRORADIOMETER)

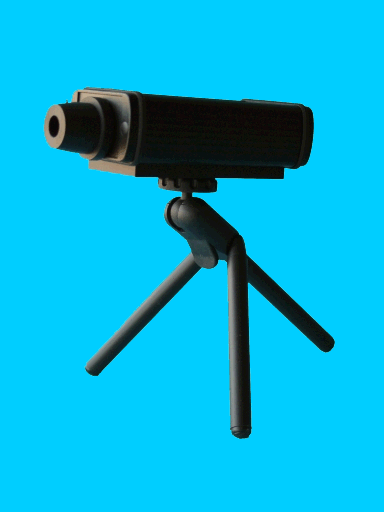

 SPECTRA 1100
(download datasheet (128kB)) is an easy
to use and economic spectroradiometer. Its miniaturized shape makes it suitable
for laboratory as well as industrial applications.
The device can be used for
the measurement of diffuse light sources, screens etc.
SPECTRA 1100
is offered in two versions:
The USB version can easily be connected with an USB port of
the PC and the measurement can be started immediately - a real plug and play
solution. The device is bus powered.
The RS232 version supplied with a PC cable and a
power supply. The instrument automatically detects the COM port. Thus problems
during installation are avoided.
Measurement and
analysis of data will be done by the PC software ATX SPECTRA lighting.
It
calculates and presents the measuring results (cromaticity, color temperature.
luminance radiance spectrum, xy and u'v' diagrammes) as well as data export to
Excel spread sheets and to ASCII files.
 |
Convince yourself by this new type of precision spectroradiometer
!
Easy to handle, reliable and compact.
|
Specifications
|
Applications |
Measurement of diffuse light sources,
screens etc. |
|
Spectral range |
380 nm ... 760 nm |
|
Spectral resolution |
9 nm |
|
Digital spectral
resolution |
4.1 nm |
|
Digital resolution |
14 bit ADC
|
|
Wavelength accuracy |
?0.5 nm |
|
Viewing angle |
2? |
|
Measuring distance/ diameter
|
20 cm - ?7mm; 100 cm - ?35 mm
|
|
Measuring values |
Spectral radiance;
Total luminance /
total radiance;
Total illuminance / total irradiance;
Cromaticity
coordinates x,y; u',v';
Correlated color temperature;
Dominant wavelength,
purity;
Color rendering index |
|
Measuring range luminance
|
2 ... 1?05 cd/m2
|
|
Luminance accuracy |
?5 % |
|
Luminance reproducibility
|
?2 % |
|
Color cromaticity accuracy
|
?0.002 x, y |
|
Color reproducibility |
?0.0005 x, y |
|
CCT reproducibility |
?20 K (@ 2900 K) |
|
Dispersive element |
Diffraction grating |
|
Light receiving element |
128 pixel photodiode array
|
|
Operating cond. |
Temperature 10 ... 40 캜
Humidity <
85 % relative humidity at 35 캜 |
|
Power supply |
RS232
version: 230 VAC (115 VAC optional)/ 9 VDC
USB version: Hub
powered |
|
PC interfaces |
RS232, 8N1, 38400 Bd
USB1.1 fullspeed
(12Mbit/sec) |
|
Dimensions |
150 mm x 58 mm x 34 mm
|
|
Weight |
300 g |
|
Accessories (included)
|
Laser head-piece for adjustment purposes
and dark measurement
PC software ATX
SPECTRA for Windows 98/2000/XP/NT(RS232 only)
Operation manual
RS232
version: Switch mode power supply Mainy
PC
cable
USB version: USB cable
Transport box
Tripod
Calibration certificate
|
Software: ATX SPECTRA lighting
|
