  플랜트용 온라인 분석기기 (PROCESS ANALYSER)















스펙트로포토메타

OMA-517 : A DIODE ARRAY UV-VIS-SWNIR PROCESS SPECTROPHOTOMETER





OMA-517



For continuous on-line concentration monitoring. The OMA-517 acquires , uses and processes a complete high resolution spectrum allowing for the OMA to be applied to a variety of high-end process applications. The OMA utilizes solid state technology and has virtually no moving parts. The advantage is clearly relevant in view of the harsh environments in which the OMA is operating.



A complete solution to an on-line application, is offered, including the design and manufacturing of a sampling system, optimization of calibration method, and establishing validation procedures to test the reliability of the measurements.

The OMA-517 provides a real alternative to the laboratory, no sample withdrawing, no sample preparation and no lag time for off-line measurement. The OMA-517 offers the best of both worlds, designed as an industrial analyzer to minimize maintenance and sample handling, while maintaining friendly user interface and data handling. By operating within the Microsoft® Windows environment, the OMA-517 incorporates all the benefits of such including access to other Windows software packages. Dedicated software for off line data analysis and method development is included.



Rapid spectral acquisition and data manipulation allows for a fast on-line response. Performance verification procedures and extensive self-test are an integrated part of the package.

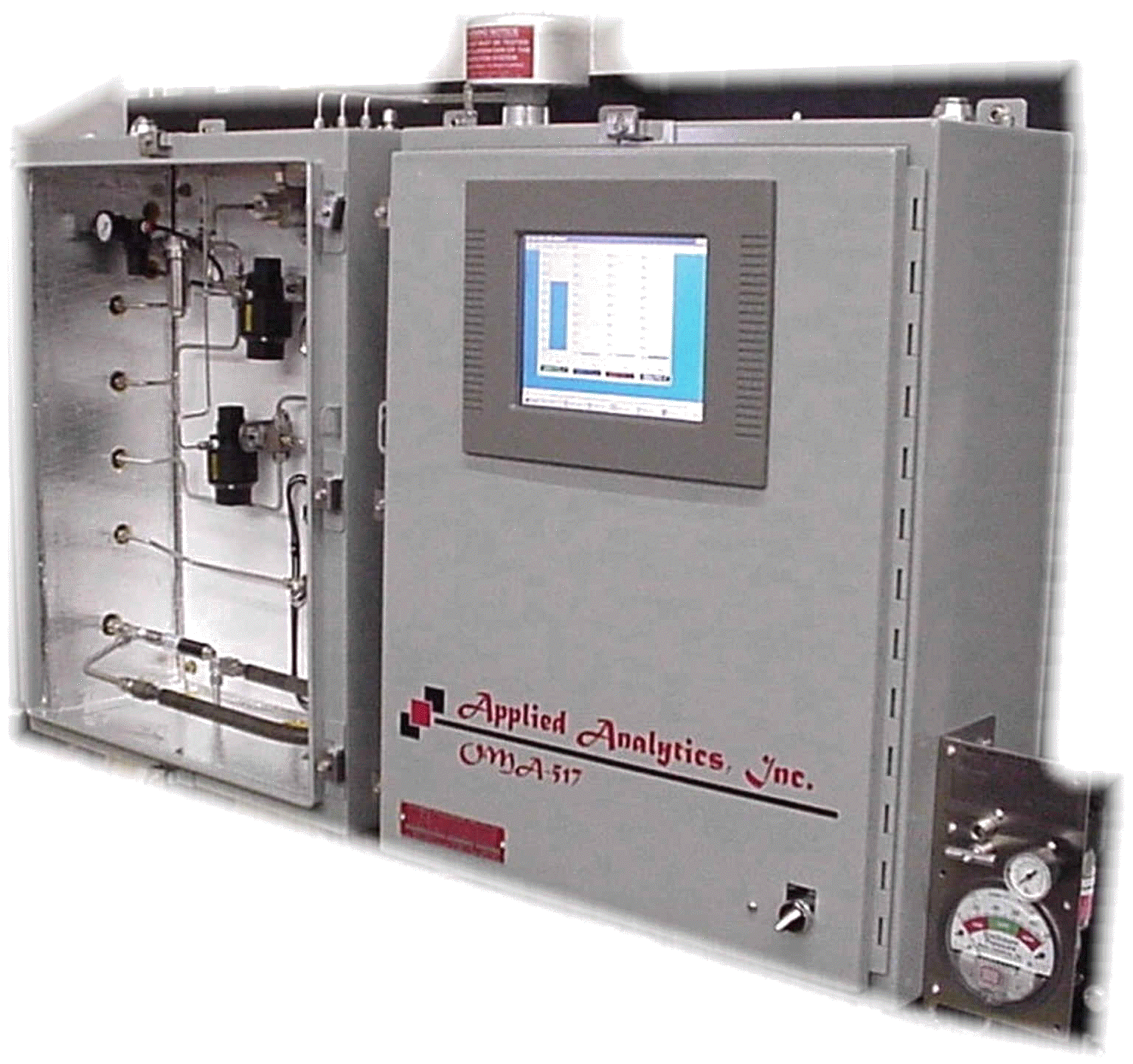

The OMA-517 is a solid state device housed in NEMA 4 enclosure designed to withstand harsh industrial environment, mounting and installing the analyzer requires minimal efforts. The wall mounted spectrometer includes a door mounted Pentium controller with an active matrix color display and touch screen used for data acquisition, control, user interface and off-line data analysis.





분광광도계, 분광계, 화학플랜트, 제약, 제지, 석유, 황화수소분석기, 잔류가스분석기, 스펙트로포토메타, 염소분석기, 자외선, 가시광선, 근적외선, 다이오드 어레이, 암모니아분석기, 벤젠분석기, 나프탈렌분석기, 방향족 분석기, 염기산화물분석기, 금속이온분석기, 바나듐분석기, 구리이온분석기, 수소분석기, 황산화물분석기, 색상분석기, 톨루엔분석기, 코발트분석기, CIP분석기, MEG분석기, 페놀분석기, 광화이버 스펙트로메타, 샘플링시스템, 벤젠, 자일렌, 발전소, 소각로, Applied Analytics, Process analyzers, On-line composition monitors, Process stream, Gas, liquid,  Hydrogen sulfide analyzer, Tail gas analyzer for the Claus sulfur recovery process, UV / VIS / NIR Diode array spectrophotometer, Chlorine analyzer, Ammonia analyzer, Aromatics analyzer, chlorine dioxide analyzer, Metal ions analyzer, MEG analyzer,  TiCl4 , vanadium analyzer, CIP analyzer, Copper ions analyzer, Hydrogen analyzer, Sulfur dioxide analyzer, TBC analyzer, Color analyzer, Fiber optic spectrometers, Sampling systems, Cl2, BTX, Benzene, Toluene, Xylene, MEHQ, NH3, Multi Components, Concentration monitoring, On-line, Continuous measurements, Cobalt recovery, Sulfur recovery, Air demand, Ammonia slip, power plant, SO2, COS, CS2, Sulfur, H2S, NCl3, ClO2, O3
