공업용 수소 분석기

H2A-528 : AN INDUSTRIAL HYDROGEN ANALYZER

On-Line Real Time Analysis of Hydrogen Concentrations

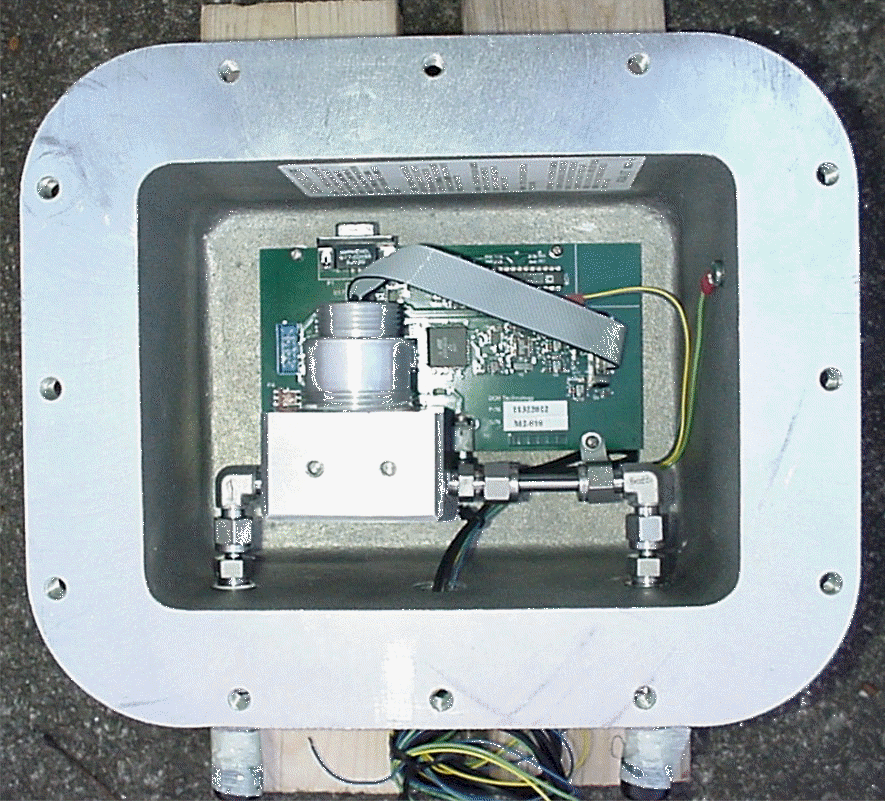

H2A-528 1.jpg (180859 bytes)

The H₂A-528 an analyzer to monitoring 0 to 100% hydrogen in a variety of backgrounds including hydrocarbons. The analyzer measures three different parameters including diffusion, and density to overcome problems commonly associated with thermal conductivity detection. The minimum detection limit is in the PPM range while the accuracy at 100% is about +/-0.5%. The analyzer is housed in a fiberglass enclosure 14" by 16" by 8" deep and is available in Class I div. II version. The analyzer can handle pressures of up to 200 psi and stream temperatures of up to 140 F.

The H2A-528 is used in the steel galvanizing industry, gas manufacturing, hydrogen fueling, power generation and battery manufacturing and charging.

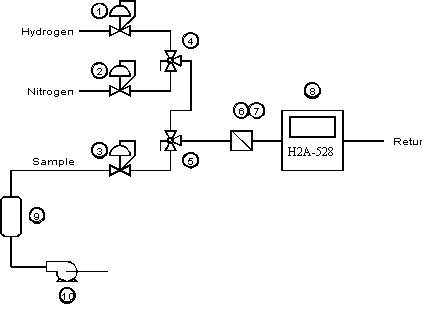

In order to verify the performance of the analyzer it is highly recommended to use pure gases (100% hydrogen and 100% nitrogen), as the linearity of the analyzer is extremely high. The following sampling system should be used for this purpose:

H₂A-528 Specifications:

Detection:	Comparison of specific heat, density and thermal conductivity in one compact solid state sensors. (patent pending).
H₂ range :	0 to 100 % +/- 0.5%
Pressure:	Minimum 15 psig Maximum 200 psig (atmospheric inlet ? optional)
Temperature:	Stream 32 F to 140 F
Sample in:	¼" Swagelock tube connection
Sample out:	¼" Swagelock tube connection
Calibration:	100% Nitrogen or air and 100% Hydrogen.
Drift:	Better than 0.1% per 48 hours
Noise:	+/- 0.1% 10 (@seconds response time).
Electrical:	90 to 240 Volts 40 Hz to 60 Hz 30 Watts.
Output:	4 ~ 20 mA 700 Ohms load galvanically isolated.
Wiring:	Through a ¾" NPT gland.
Interface:	Backlit LCD display (two lines twenty characters).
Numerical keypad	(0...9, . , ENTER, UP-ARROW, DOWN ARROW, CE) F1, F2, MENU, CLEAR, SELECT
THREE Warning lights.
ON/ OFF Switch
Enclosure:	Fiberglass hinged cover type 4X
Dimensions:	Width = 14" (406) Height = 16" (356)
Depth:	8" (203)
Weight:	12 lbs. (5 Kg.)
Mounting holes:	16.94" by 12"
