TIDAS-MSP 3095 FLUORESCENCE MICROSCOPE SPECTROPHOTOMETER

• Adaption to most microscopes on the market with a phototube
• Modern diode array spectrometer for a wavelength range UV-VIS-NIR with various resolutions and sensivities. A photomultiplier tube is available as well.
• Fixed straight adaptors and beam splitters for a variable spot and simultaneous coupling of the spectrometer and a tv-camera
• Fibre optics coupled light source with fast monochromator for uv- and visible range
• State of art software under Windows 98 and NT.
• Imaging software (e.g. Zeiss Vision) for simultaneous archiving of images and spectra
• The spectrometer systems can also be used for laboratory work with cell holders, immersion probes and other measuring units

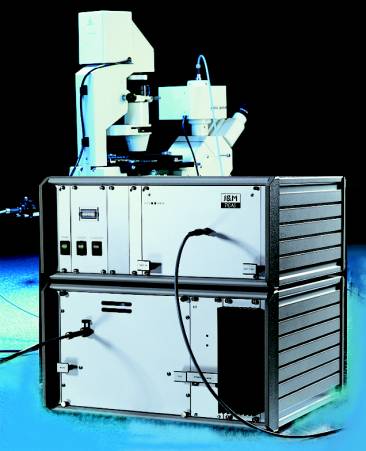

Image shows a configuration with microscope Axiovert, spectrometer TIDAS and fast monochromator

 TIDAS-MSP 3095

             Fast Ratio Measurement e.g. FURA, INDO, etc.

 MICROSCOPE (recommendation)

Axiovert

Custom dependent accessories and options

 COMPUTER (recommendation)

Minimal configuration
Control unit
350 MHz PIII or higher
min. 64 MB RAM (max.128 MB)
monitor 17“ (19“)
Operation System WIN NT or WIN 98

                                       FLUORESCENSE SPECTROMETER

Fast Fluorescence System FL3095

Fluorescence system with diode array spectrometer and

high speed Monochromator: 140.000 nm/sec

Galvano scanner,

Excitation 260 - 680 nm,

Emission 320 - 950 nm,

256 Pixel, 3,2 nm/Pixel, 1200 Spectren/sek.

16 Bit/500KHz Electronic

fibres for illumination and detection

Item No. 111384.001

Photometer

PMT- Modul

for weak fluorescence signals

housing with power supply, high voltage supply

16 Bit µ-Processor for control and data management

max. speed 10000 data points/sec

Item No. 207360 .020

 ACCESSORIES AND ADAPTERS
Backward illumination for measuring field
Item-no. 81 654 38

MIC-Out 3
Decoupling optical system with beamsplitter
for camera and spectrometer.
Adaptor for optical fibre, variable rectangular diaphragm.
Item-no. 51 598 92

MIC-IN1

Fibre adaptor quartz, entry optic optimized for

Microscope  Axiovert or Axiotech

Item No. 104000.100

Motorised filter wheel for transmission with shutter and
intensity control
Item-no. 51 598 84

MIC-In 2
Fibre adapter for transmission set-up.
Connects microscope with light source
Item-no. 81 654 36

 SOFTWARE
Spectralys and Spectra-RMS

Basic SW-package, containing Spectralys,
and Ration measurement module

Item-no. 51 596 99 (WIN-NT/95/98)

 OPTIONS
TV camera with CCD and video card
TV software module TIDAS/AxioVision
Item-no. 81 654 39

 SERVICE
                                 System integration and test, quality check with protocol
                                 Installation and training
                                 Item-no. 88 670 01

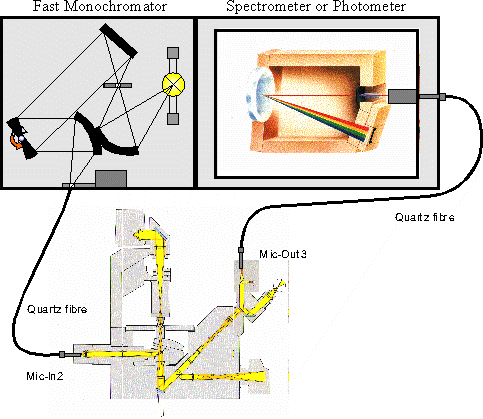

System overview with spectrometer, monochromator and Axiovert
