  광 계측기기 (OPTICAL INSTRUMENTS)





RPS 380  RPS 200 RGS 2  RPS 900  RPS900 LED   OPM











RPS 900 WIDEBAND SPECTRORADIOMETER



200 nm to 1050 nm

Powerful, economical digital light meter easily and accurately measures spectral irradiance from the UV to the infrared (near), lux, color, and more. Precision, portable USB powered spectrum measurement instrument.

The most cost-effective, fully integrated CCD-based spectroradiometer family available.

Aimed at both the laboratory and industrial user, the ILT900 combines accuracy, ruggedness and complete user control in a package designed specifically for radiometric use. Measure wavelength, measure color, measure reflectance or transmittance this portable, digital light meter puts the power in your hand. Even the basic ILT900-R instrument includes everything needed for the widest range of standard measurements and has a large range  of specialized accessories to suit the most unusual requirements. Complete with input optics, software, cables, manuals and complete calibration, the ILT900 is ready to work right out of the box.



Interested in the ILT900 and want to know if it will work for your application? Please tell our applications engineers more about your application -

System Features & Benefits

  • NIST-Traceable Spectroradiometer capable of measuring 200 to 1100 nm at 1 nm resolution. Standard calibration range is 250 to 950nm. Custom calibration ranges between 200 and 1100 nm may be available.
  • Spectral sensitivity better than:
    • Visible: 5 nanoWatt/cm2/nm
    • UV/NIR: 0.1 microWatt/cm2/nm
  • Stray light rejection: better than 5 x 10-4 of total integrated power per nm
  • Intrinsic Repeatability: 0.5%
  • Spectral accuracy: 0.5 nm
  • Radiometric accuracy: ± 3 % VIS, ± 5% UV/NIR
  • Cosine Receptor accuracy: ± 3% from 0 - 90°, all wavelengths
  • Rugged, shock-mounted construction in dustproof die cast aluminum housing
  • Temperature range: 15 - 40°C
  • Standard stainless steel armored 2m coupling fiber
  • 2048 element imaging CCD with proprietary order-sorting filtration
  • 16-bit conversion resolves low-level spectra on large backgrounds
  • Exposure time adjustable from 1 mS to 5 S
  • Data collection is software controlled or externally triggered
  • USB 2.0 interface, powered by USB connection
  • Requires: Windows 98, 2000, XP, Pentium II 300 MHz or better
  • Available in three options



System includes:

  • ILT900-R Wideband Spectroradiometer
  • CC900 Carrying Case
  • FFO259700 2 meter long fiber
  • W2 cosine correcting receptor
  • OCAL/N/VS9 calibration



Optional Accessories :

  • R2 radiance barrel with VS9 calibration for luminance and radiance measurements
  • A706 Spot finder light source used to determine the measurement area of the R2 (RPS900) radiance head
  • A2706 LED Mount for INS150
  • A2707 LED Mount for INS150 Leaded LED holder for 3 and 5 mm packaged single and bi-color LEDS, Includes MagPro magnetic mounting system
  • A2708 LED Mount for INS150  SMT holder for 1206 and PLC sources. Includes MagPro magnetic mounting system
  • INS150 6 inch integrating sphere
  • INS250 10 inch integrating sphere









Spectrilight™ Control Software

The SpectrILight software package puts complete control of data taking in the user’s hands. Wavelength range and resolution, exposure time, scan averaging and smoothing, batch and pre-scheduled data collection are all handled. The % Transmission/Reflectance and Irradiance measurement displays can be exported to ASCII text, Excel®, BMP or SPC formats, complemented by a suite of built-in report generating functions. On-line reflectance color analysis is also provided, including Chromaticity and Color Difference.



Spectrilight Tools™


In addition to the on-line analysis available in SpectrILight, SpectrILight Tools is a powerful Excel® app that accepts 1 nm resolution input files and calculates all standard spectral parameters such as nanometers, lux, scotopic intensity, UVA,B,C,VIS, PAR including Einsteins, Chromaticity, Dominant and Complementary wavelength, Color Purity, CCT, CRI, Solar Simulator and more. User-selectable bands can be defined interactively, and user-defined weighting functions can also be installed



.

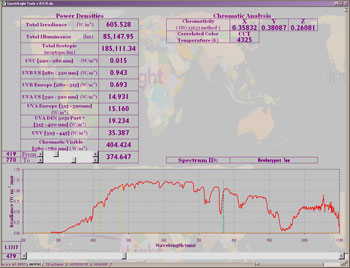

 colorimetric Output screen shot

Colorimetric Output Screen Shot



spectral output screen shot

Spectral Output Screen Shot
