The Ultimate Diagnostic Tool

For Conveyor-Based UV Curing

The revolutionary IL393UV is the first UV
analyzer to combine dosage measurements,
for ensuring product quality, with system
diagnostics in one simple, automated package.

Run Time System Diagnostics

International Light's exclusive Uniformity View graphically shows the absolute performance of each lamp subassembly in your system. A stored reference plot allows you to compare, on-the-spot, the current performance of the system with your standard operating parameters. There is no need to go to a computer station or to run complicated software.

Complete, easy to understand, run-time analysis of your process and equipment at the press of a single button

The IL393UV, built on the solid foundation of its predecessors, the IL290 and IL390, maintains all of the excellent optical and signal processing capabilities that have made these instruments the industry standards in sensitivity, accuracy, ease of use, and ruggedness. The IL393UV improves on these versions by adding sophisticated run-time system diagnostics.

As the IL393UV passes through the oven it acquires the maximum irradiance at every point along the curing path. It then shows this information as a graph of irradiance vs position allowing the operator to instantly see the uniformity of the product illumination.

By recalling a stored a baseline run, the IL393UV provides both quantitative and qualitative analysis of the current run. This information is provided automatically and immediately on-the spot.

The IL393UV is available in two standard versions and may be supplied with custom filtration upon request.

International Light, Inc. makes a broad range of UV process monitoring radiometers, including handheld models, extended probe models for flexographic systems, and spectroradiometers. International Light, Inc. also manufactures UV hazard monitors and photometers for OSHA compliance. Please contact to us for further information on these and our full line of NIST traceable radiometric systems and accessories.

The baseline run, B, took 126 seconds. Maximum irradiance was 271mW/cm^2.

The current run, C, shows that the middle lamp has reduced irradiance but the others have maintained their output levels.

The difference display shows that there were 7 days between the reference and current run. The middle bulb has lost 32% of its output energy.

SPECIFICATIONS:

Dose Range

1mJ/cm² to 20J/cm²

Intensity Range

1mW/cm² to 20W/cm²

Cosine Receptor

Integrating Cavity

Temperature Range

10⁴

Out of Band Rejection

Typically better than 6%

Accuracy

Graphic with 4 significant digits

Display

Dose
Maximum irradiance
Irradiance uniformity profile

Information Displayed

Reference profile
Difference profile

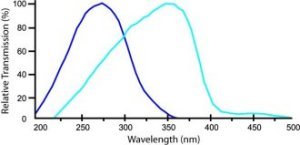

Spectral Ranges

205nm to 345nm     IL393UV-C
250nm to 400nm     IL393UV

Dimensions

0.5 x 4.4 x 6.3”
12.7mm x 111mm x 161mm
0.75lbs 0.34Kg
