LED CHARACTERIZATON SYSTEM


UV to IR Spectral Range 97 % Reflectance (450 to 900 nm) Greater than 93 % UV Reflectance (above 250 nm) Highly Diffuse Surface Durable Barium Sulfate Coating (Kodak #6080) Large Diameter Sphere (250 mm) Internally Baffled Three 90° Orthagonal Ports Built-In Regulated Lamp Supply Lamp ON/OFF Switch Convenient Mechanical Design 1000 to 1 attenuation Custom Port Sizes Available

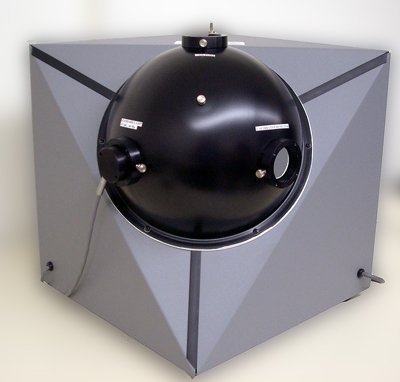

The INS250 Integrating Sphere combines high throughput with an oversized diameter to minimize the effect of exit ports. The unit contains a built-in regulated power supply and calibrated standard lamp. The Kodak White Reflectance Coating (#6080) provides 97% reflectance from 450 to 900 nm. This barium sulfate formula is the most stable, durable, diffuse white reflectance coating available.

RADIOMETRIC:
Dynamic Range: 1 x 10^-8 to 20 W, 1 x 10^-6 to 7000 lm, 1x10^-7 to 200 cd.
Spectral Range: 225 to 1400 nm.
Reflectance: 250 nm: 93%, 350 nm: 96 %, 400 nm: 97 %, 500 nm: 97 %, 700 nm: 97 %.
Lamp Output: 30-50 mcd.

ELECTRICAL / MECHANICAL:
Input Power: 115 VAC, 50-60 Hz (230 VAC available).
Max Lamp Power: 10 W (Power Supply).
Internal Sphere Coating: Kodak White Reflectance (# 6080)
Sphere Diameter: 254 mm (10").
Size: 365 mm cube (14.4").
Weight: 4.8 Kg (10.6 lbs.).
