미니 열전대 써모파일

MINIATURE NEEDLE TYPE

THERMOCOUPLE THERMOPILES (DT-06-ATX)

DT-06-ATX MINIATURE Needle type DIFFERENTIAL TEMPERATURE Sensor

The DT-06-ATX needle type differential temperature sensor is used to perform continuous measurement of temperature differences as well as absolute temperatures. It is meant for general monitoring of industrial processes and in particular for detection of small thermal changes.

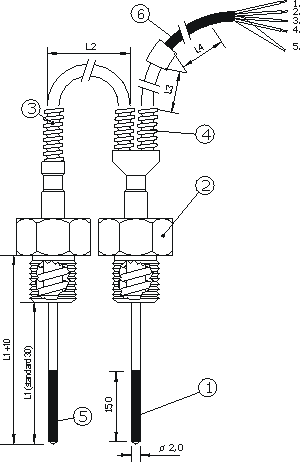

Figure 1. DT-06-ATX is used for high temperature applications up to 450 degrees C.



(1) sensor 1 (reference with temperature)

(3) metal sheathed connection cable

(2) spring loaded bolt (MF10x1)

(4) metal sheathed cable

(5) sensor 2

(6) tefon extension cable

Dimensions are in mm.

INTRODUCTION

The DT-06-ATX has been designed for studies of the energy balance of industrial installations, in particular to monitor small changes within larger processes. In this application it can be useful to monitor temperature differences between one location and the next rather than absolute temperatures.

The main components are two matched thermocouple sensors, incorporated in a fully stainless steel needles. These sensors as well as their interconnecting wires can withstand temperatures up to 450 degrees C.

The extension cable is made of Teflon.

Sensor output consists of a heat flux signal (microvolt analog signal) and type K thermocouple. DT-06-ATX sensors can be manufactured in such a way that they are fully exchangeable, which is easy for servicing.



SUGGESTED USE

Studies of energy balance of industrial processes.



MORE INFORMATION / OPTIONS

Alternative designs: Hukseflux is specialised in heat flux sensor design. For different applications special models can be constructed.

Optional: DT-06-ATX can be made in different diameters and lengths. Extended temperature to 700 °C. (no spring)



Depending on the application, amplifiers AC100 or NAM01 are used.



DT-06-ATX SPECIFICATIONS

• Sensitivity (nominal): 40 10^-6 V/K
• Temperature range (total sensor including metal sheathed cable): -55 to +450 °C
• Temperature range (Teflon cable): -55 to +260 °C
• Heat flux output signal: analog microvolts
• Power requirements: No power required
• Optional: sensor length and diameter, extended cable, cables with alternative colour codes, extended temperature to 700 °C
• Ordering code: DT-06-ATX/L1/L2/L3/L4, L1 to L4 in mm
• Standard: DT-06-ATX/30/1000/100/2500
• Temperature sensor: Thermocouple K,  ANSI MC96.1-1982
• Protection sensor tube: IP 68
• Protection metal sheathed cable: IP 68
• Protection Teflon cable: IP 67
