HEAT
FLUX MEASUREMENT SYSTEM (ALUSYS-ATX)
HEAT
FLUX SENSOR SYSTEM FOR USE IN ALUMINIUM
SMELTER/ FURNACES
The ALUSYS-ATX has been designed for use in
the study of aluminium smelters / furnaces. The system consists of a Measurement
Control Unit and a number of heat flux / surface temperature sensors of type
HF01 with magnet frame. These sensors can be mounted on the steel shell of the
smelter.

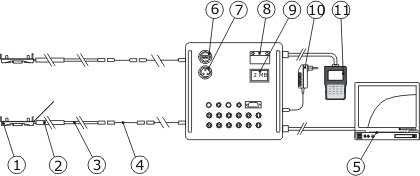

Figure 1 Schematic overview of the
measurement system;(1) HF01 sensor with magnet
frame, (2) HF01 cable metal insulated with silicone sleeve. (3) HF01 cable Teflon. (4)
Teflon extension cables with 2 connectors. (5) PC or laptop (not part of the
system). (6) USB connector for connection to PC or laptop. (7) connector for
charger. (8) battery. (9) system memory. (10) charger (110/220 VAC). (11)
Keyboard Display (LCD Display). Items 6 to 11 are the MCU.
INTRODUCTION
- ALUSYS-ATX system is used to perform measurement
of heat fluxes and surface temperature at high temperatures. It is designed in
particular for the study of aluminium smelters / furnaces.
- The electronics can accept 12 or 3 sensors
(using a multiplexer, depending on the model).The assembled data are exported to
a PC via USB. A PC, not part of the system, can be used for on-line graphical
monitoring as well as data collection.
- The system can operate for a limited time on a
battery that is incorporated in the system box (at least 24 hours)
- For all information on the HF01 sensors, the
user should read brochure and manual for that sensor.
Advantages of HF01 relative to competing
models are:
-
robust, in particular at high temperatures
-
fast response time, so reduced experiment time
- low thermal resistance; improved measurement
accuracy
- one sensor model suitable for measurements on
the shell as well as in the powder material
Reference users of HF01 are: Comalco, Alcan,
Corus and Norsk Hydro.
SUGGESTED USE
- Studies of aluminium melting
furnaces
MORE INFORMATION / OPTIONS
- Modeling:
for
cell heat balance modeling tools
ALUSYS-ATX SPECIFICATIONS
|
