AIR
STANDARD GAGE : TOOL HOLDER TYPE
Measuring System for Taper Measuring of HSK Tool Shanks according to DIN
69893
|
 Required Measuring and Control Device with Accessories
|
|
|
Description |
|
Part No. |
|
Qty. |
|
Control Device MSG-32-M1/2
channels |
|
650-2100-000000 |
|
1 |
|
Operating Box WT
MSG-2 |
|
711-0003-000002 |
|
1 |
|
Service Unit 1/4", Filter, Pressure Gauge |
|
700-0001-000001 |
|
1 |
|
Air Buffer, volume 10
Liter |
|
700-0002-000000 |
|
1 |
|
Quick-change coupling 1/8" |
|
700-0003-000001 |
|
2 |
|
Sliding Valve
Z04.1 |
|
700-0004-000001 |
|
1 |
Attributes:
d1, d2 (absolute
or deviation in µ),
taper angle deviation in µ or º
|
|

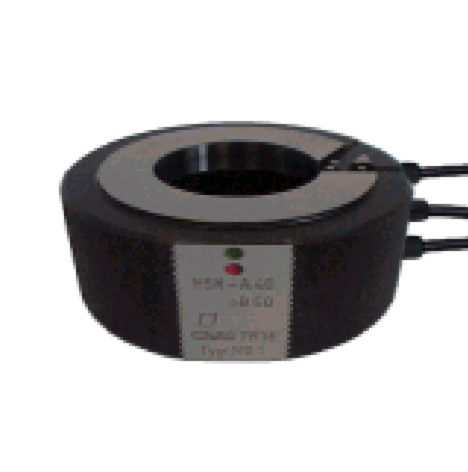

Taper Air-jet Ring
|
|
|
Taper Air-jet ring with two measuring
levels, hard-plated incl. wooden box, 1.5 m hose and quick-change coupling
|
|
Form A / B |
|
|
|
Flange Dia. |
|
Part No. |
|
HSK-A 32/B 40 |
|
415-2240-004122 |
|
HSK-A 40/B 50 |
|
415-2240-004123 |
|
HSK-A 50/B 63 |
|
415-2240-004124 |
|
HSK-A 63/B 80 |
|
415-2240-004125 |
|
HSK-A 80/B 100 |
|
415-2240-004126 |
|
HSK-A 100/B 125 |
|
415-2240-004127 |
|
HSK-A 125/B 160 |
|
415-2240-004768 |
|
HSK-A 160 |
|
415-2240-004769 |
|
|
|
|
|
Form E / F |
|
|
|
Flange Dia. |
|
Part No. |
|
HSK-E 25 |
|
415-2240-004835 |
|
HSK-E 32 |
|
415-2240-004836 |
|
HSK-E 40/F 50 |
|
415-2240-004837 |
|
HSK-E 50/F 63 |
|
415-2240-004838 |
|
HSK-E 63/F 80 |
|
415-2240-004839 |
|
|
Master Taper for Taper Air-jet
Ring
|
|
|
Master taper w/flange contact and
calibration step, gauge
steel, age-hardened and certified, together with taper
air-jet ring in
wooden box
|
|
Form A / B |
|
|
|
Flange Dia. |
|
Part No. |
|
HSK-A 32/B 40 |
|
300-0008-004128 |
|
HSK-A 40/B 50 |
|
300-0008-004129 |
|
HSK-A 50/B 63 |
|
300-0008-004130 |
|
HSK-A 63/B 80 |
|
300-0008-004131 |
|
HSK-A 80/B 100 |
|
300-0008-004132 |
|
HSK-A 100/B 125 |
|
300-0008-004133 |
|
HSK-A 125/B 160 |
|
300-0008-004770 |
|
HSK-A 160 |
|
300-0008-004771 |
|
|
|
|
|
Form E / F |
|
|
|
Flange Dia. |
|
Part No. |
|
HSK-E 25 |
|
300-0008-004840 |
|
HSK-E 32 |
|
300-0008-004841 |
|
HSK-E 40/F 50 |
|
300-0008-004842 |
|
HSK-E 50/F 63 |
|
300-0008-004843 |
|
HSK-E 63/F 80 |
|
300-0008-004844 |
|
|

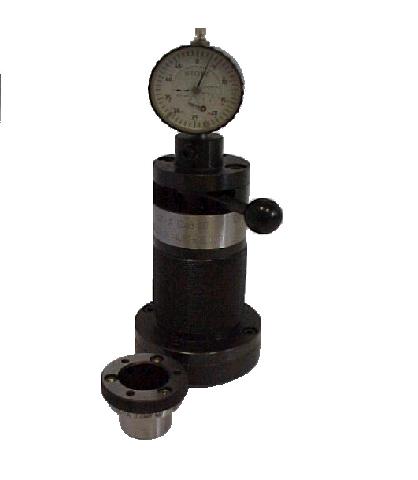

Clamping Shoulder Measuring Device (mechanical)
|
|
| Clamping shoulder measuring
device incl. master gauge, dial indicator and wooden box; dial indicator
certificate optional |
|
Form
A/B/E/F |
|
|
|
Flange Diameter |
|
Part No. |
|
HSK-E 25 |
|
800-0000-006923 |
|
HSK-A 32/B
40/E 32 |
|
800-0000-004170 |
|
HSK-A 40/B 50/E 40/F
50 |
|
800-0000-004171 |
|
HSK-A 50/B
63/E 50/F 63 |
|
800-0000-004172 |
|
HSK-A 63/B 80/E 63/F
80 |
|
800-0000-004173 |
|
HSK-A 80/B
100 |
|
800-0000-004174 |
|
HSK-A 100/B 125 |
|
800-0000-004175 |
|
HSK-A
125/B160 |
|
800-0000-004797 |
|
HSK-A 160 |
|
800-0000-005199 |
|
Dial
indicator certificate |
|
800-0001-000000 |
|
|

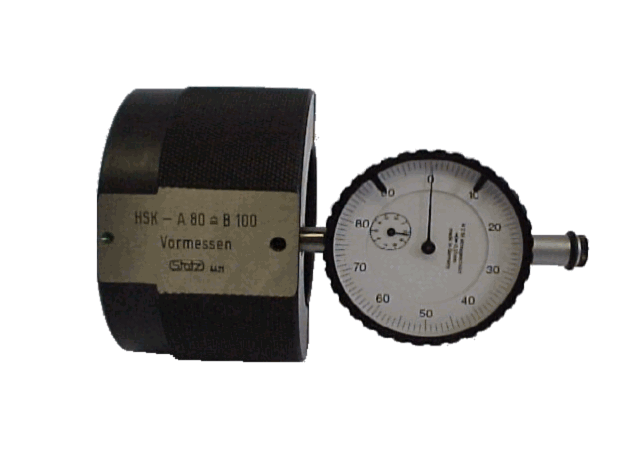

Pre-measuring Device for the Flange Contact Surface
(mechanical)
|
Pre-measuring device for measuring the flange contact surface including
dial indicator and wooden box;
dial indicator certificate
optional
NOTE: Pre-setting of the pre-measuring
device by placing it on a plane surface. No separate master gage
offered. |
|
Form
A/B/E/F |
|
|
|
Flange Dia. |
|
Part No. |
|
HSK-E 25 |
|
800-0000-006928 |
|
HSK-A 32/B
40/E 32 |
|
800-0000-004285 |
|
HSK-A 40/B 50/E 40/F
50 |
|
800-0000-004286 |
|
HSK-A 50/B
63/E 50/F 63 |
|
800-0000-004287 |
|
HSK-A 63/B 80/E 63/F
80 |
|
800-0000-004288 |
|
HSK-A 80/B
100 |
|
800-0000-004421 |
|
HSK-A 100/B 125 |
|
800-0000-004558 |
|
HSK-A
125/B160 |
|
800-0000-004773 |
|
HSK-A 160 |
|
800-0000-004774 |
|
Dial
indicator certificate |
|
800-0001-00000 |
|
|
Air-jet Ring
|
|
|
Air-jet ring, hard chrome-plated incl. wooden box, 1.5 m hose
and quick-change coupling
|
|
Form A/B/E/F |
|
|
|
Flange Dia. |
|
Part No. |
|
HSK-E 25 |
|
409-2310-007834 |
|
HSK-A 32/B 40/E
32 |
|
409-2310-007835 |
|
HSK-A40/B 50/E
40/F50 |
|
409-2310-007836 |
|
HSK-A 50/B 63/E 50/F
63 |
|
409-2310-007837 |
|
HSK-A 63/B 80/E 63/F 80 |
|
409-2310-007838 |
|
HSK-A 80/B 100 |
|
409-2310-007839 |
|
HSK-A 100/B 125 |
|
409-2310-007840 |
|
HSK-A 125/B 160 |
|
409-2310-007841 |
|
HSK-A 160 |
|
409-2310-007842 |
|
|
Master for Air-jet Ring
|
|
Master with calibration step, gauge
steel, age-hardened and certified, together with air-jet ring in wooden
box |
|
Form A/B/E/F |
|
|
|
Flange Dia. |
|
Part No. |
|
HSK-E 25 |
|
300-2000-007845 |
|
HSK-A 32/B 40/E
32 |
|
300-2000-007846 |
|
HSK-A40/B 50/E
40/F50 |
|
300-2000-007847 |
|
HSK-A 50/B 63/E 50/F
63 |
|
300-2000-007848 |
|
HSK-A 63/B 80/E 63/F 80 |
|
300-2000-007849 |
|
HSK-A 80/B 100 |
|
300-2000-007850 |
|
HSK-A 100/B 125 |
|
300-2000-007851 |
|
HSK-A 125/B 160 |
|
300-2000-007852 |
|
HSK-A 160 |
|
300-2000-007853 |
|
|
| |
|
|
