태양광 FIR 측정 시스템 - SIR 02

(SOLAR FIR RADIATION MEASUREMENT : PYRGEOMETER)

PYRGEOMETER WITH HEATING

SIR02 is a sensor that can be applied for Far Infra Red (FIR) radiation observations. The main application is in meteorological outdoor experiments. The scientific name of this instrument is pyrgeometer. SIR02 is heated, which improves measurement accuracy because it prevents dew deposition.

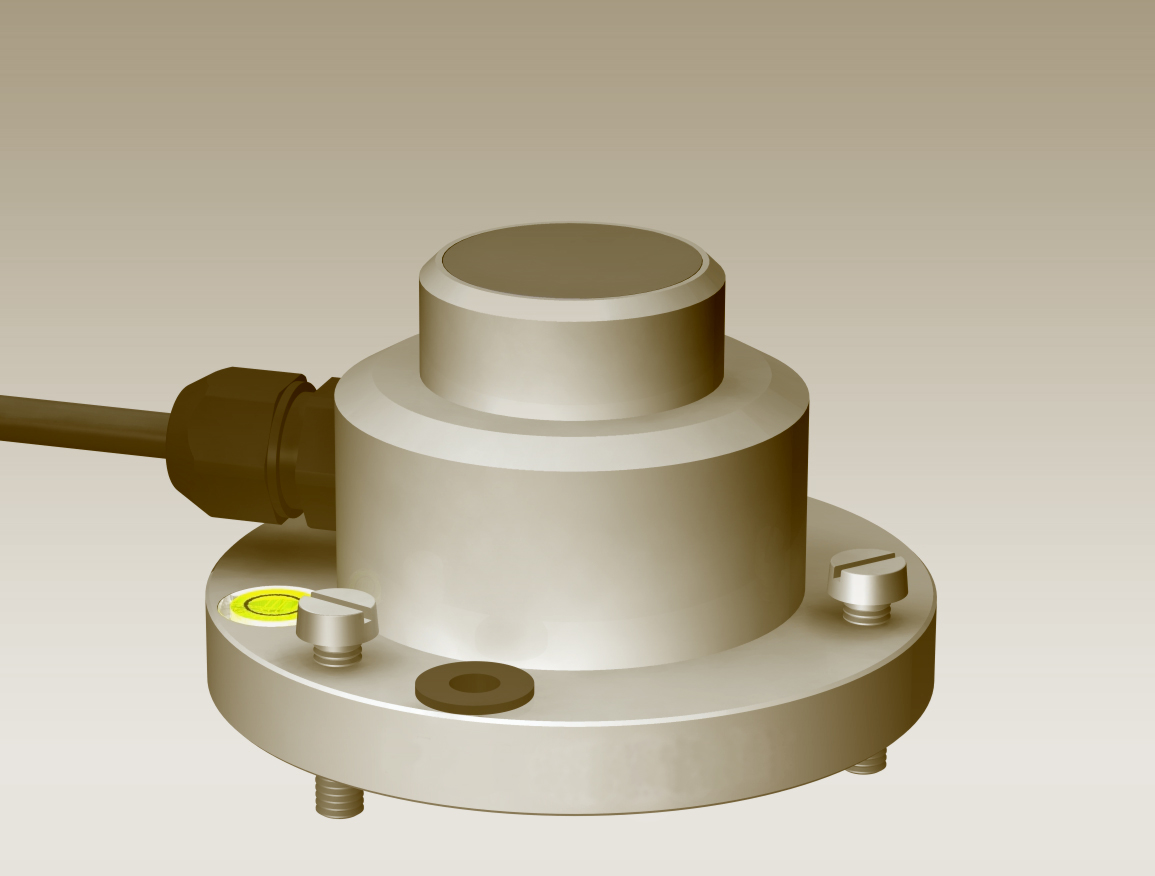

Figure 1 SIR02 pyrgeometer: (1) heater, (2) Pt100 temperature sensor, (3) sensor, (4) FIR window, (5) cable gland, (6) cable, standard length 5 m, (7) level, (8) screwed cable connection, (9) access for cable connection / replacement, (10) rubber O-ring, (11) levelling feet

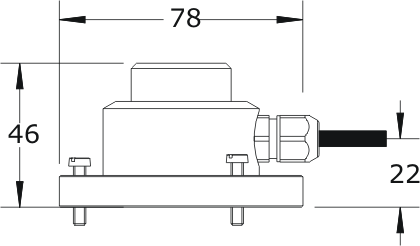

Figure 2 SIR02 dimensions. Standard cable length is 5 m. Cable can be installed / replaced by the user.

INTRODUCTION

SIR02 serves to measure the FIR radiation flux that is incident on a plane surface in W/m². Working completely passive, using a thermopile sensor, SIR02 generates a small output voltage proportional to the flux between the object within the field of view, and the SIR02 sensor. SIR02 has a spectrally flat response across the full FIR spectrum, effectively from 4500 to 50000 nm.

A Pt100 temperature sensor is used to estimate the sensor temperature, and makes it possible to calculate the object’s emitted radiation or temperature (facing the sky, this is the so-called “sky temperature”).

The instrument can directly be connected to most commonly used datalogging systems.

SIR02 can be used for general meteorological observations. A common application is for outdoor FIR measurements, in combination with a pyranometer, as part of a meteorological station. This application requires horizontal levelling; levelling feet (10) and a level (6) are included. The SIR02 cable can easily be installed or replaced by the user. For net-FIR measurements, see also the SNR01 net-radiometer.

SIR02 SPECIFICATIONS

General:

• Sensitivity (nominal):                 15 µV/ Wm^-2
• Temperature range:                  -40 to +80 ^oC
• Range:                                   -1000 to +1000 Wm^-2
• Temperature dependence:         < 0.1%/°C
• Temperature sensor:                 Pt100
• Spectral range:                        4500 to 50000 nm
• Calibration traceability:              ITS 90
• Window heating offset:              <15 Wm^-2 @       1000  Wm^-2 solar radiation
• Heating power:                         1.6 Watt @12VDC

OPTIONS

Additional cable length x metres (add to 5m)
